Prime Pinnacle Speaker
Prime Pinnacle Speaker
All-new driver array features first-ever 5.25-inch midrange and triple woofer design with 1-inch aluminum dome tweeter for revealing highs with deep, room-energizing bass and crisp dynamics at all listening levels. SoundMatch 3-way crossover maintains pinpoint accuracy and silky-smooth transitions with expansive soundstage and precise imaging for largest “sweet spot” possible.
Prime Pinnacle
Product Overview
World-Class Audio for Everyone
The ultimate expression of what SVS sought to create with the Prime Series loudspeakers is epitomized in Prime Pinnacle. Audiophile refinement and musicality without sacrificing wide dynamic range, deep, effortless bass and all the excitement of a world-class loudspeaker.
SVS acoustic engineers spent more time voicing Prime Pinnacle than any speaker in SVS history, in large part to create a loudspeaker that was equally suited to meet the demands of both discerning audiophiles and hardcore home theater fans. To go even further, Prime Pinnacle’s cabinet design was made to blend seamlessly and sound amazing in any listening environment.
World-class performance in both a two-channel HiFi stereo or an immersive home theater surround sound system, Prime Pinnacle is unrivaled in its class and well-beyond.
User Reviews
Dylan N. Reviews the Prime Pinnacle Surround System
"Great sound, Great bass and very balanced!"- Dylan N.
Joseph S. Reviews the Prime Pinnacle Surround System
"Quality, looks, price … these speakers have it all. Such clean sound even at lower volumes. Highly recommend!"- Joseph S.
Jeff T. Reviews the Prime Pinnacle
"Even stiff and new the Pinnacles immediately sounded amazing! The detail and clarity of instruments and the smooth well balanced vocals are stunning and the...
Press Reviews
SVS Prime Pinnacle Earns “Reference” Status in 5-Star Review
“Detailed, full-range sound, a speaker that sounds like it costs far more. The construction is top-notch, and the sound quality is fantastic. Listening to st...
The Master Switch Reviews the Prime Pinnacle
"The SVS Prime Pinnacle speakers deliver warm and engaging sound quality that is quite addictive. Bass on is just sublime. The construction and build quality...
HM Entertainment Reviews the Prime Pinnacle Loudspeaker
"The towers were able to dig deep yet feel refined enough to deliver musical details with convincing realism. Along with a rock-solid mid-range and energeti...
AV Nirvana Reviews the SVS Prime Pinnacle Speaker
"Stellar performers in any well-integrated home theater system. Clarity, slam and impact, coupled with the ability to recreate subtle atmospherics, make the...
YouTuber “Techno Dad” Reviews Prime Pinnacle Speakers
"Very impressed! The prime pinnacles are versatile and great for music, movies and everyday TV watching. Overall, these are great speakers in a multi-channel...
HiFi Voice (Czechoslovakia) Reviews the Prime Pinnacle Loudspeaker
“Prime Pinnacle are universally "bombastic", they can play great soundtracks of modern films, contemporary, pop and rock with authority. For clarity and inte...
Prime Pinnacle Earns Enjoy The Music's "Blue Note 2020" Award
“Clear, tight, deep and downright wondrous. If you are looking for a speaker that does music and HT equally well, the Pinnacle is an absolute no brainer.”
New Record Day Reviews the Prime Pinnacle Tower Speaker
“Truly a versatile speaker. No matter what gear you have or what room you listen in, it’s like clay, you can mold it to sound great. Plenty of reveling deta...
Prime Pinnacle Honored with HiFi News "Outstanding Product" Award
“Sound that's as big and bold as they come at this price. As well as being nuanced, authoritative and weighty with the bass, these SVS floorstanders are ver...
EISA Names Prime Pinnacle "Best Loudspeaker"
"Sitting at the top of the SVS Prime range, this classically-styled floorstanding model is of simple design and construction, yet delivers a clear, crowd-ple...
The Master Switch Hails Prime Pinnacle as "Best Overall Floorstanding Speaker"
“In terms of sound, value, and design, they just crush it. We adore the audio quality, which manages to be both breathtakingly powerful and surprisingly art...
Prime Pinnacle Receives HiFi News Outstanding Product Award
“Just svelte enough to slip into all but the smallest rooms, and undemanding when it comes to placement, these floorstanders have clear all-round appeal, mat...
Home Media Entertainment Reviews the Prime Pinnacle Loudspeaker
“The towers were able to dig deep yet feel refined enough to deliver musical details with convincing realism. Along with a rock-solid mid-range and energeti...
HiFiRoom.cz (Czech Republic) Reviews the Prime Pinnacle
“Frequency response is balanced and accurate with solid bass starting with the deepest octaves, but it should be emphasized that the midrange band and pure n...
EnjoytheMusic Reviews the Prime Pinnacle
"Offer a sense of refinement and harmonic complexity with amazing scale, rhythm, dynamics and real low end extension. Bass is clear, tight, deep and downrigh...
Prime Pinnacle Receives HomeTheaterReview's "Best of 2019" Award
"Equally at ease with music as well as movie soundtracks, the SVS Prime Pinnacles are winning over fans and fast, and that includes Greg Handy, who said in t...
Prime Pinnacle Receives the SoundStage Reviewers Choice Award
"Effortless dynamics…wonderfully articulate in their ability to convey detail while maintaining a full-bodied sound that should envelop listeners in even lar...
AVOnline (Hungary) Reviews the Prime Pinnacle Loudspeaker
"Conjured up a huge soundstage with a realistic panorama of 3D low frequency sound. Even with familiar recordings we felt details that were not coming from ...
Prime Pinnacle Loudspeaker Reviewed by Home Theater Review
"The SVS Prime Pinnacles astounded me with their tight bottom end, impressive midrange, and holographic imaging capabilities, and more so with their impressi...
Audioholics Reviews the Prime Pinnacle Loudspeaker
"The SVS speakers proved to be adept with all aspects of the sound, begged for a high playback level. Smooth, articulate sound with terrific imaging. Excelle...
![shadow](png/section-shadow-flippedb461.png)
Frequency Response / Acoustic Data:
- Rated bandwidth: 29 Hz-25 kHz (±3 dB)
- Nominal impedance: 8 ohms
- Sensitivity: 88 dB (2.83V @ 1 meter full-space, 300-3kHz)
- Recommended amplifier power: 20-300 watts
Speaker Specs:

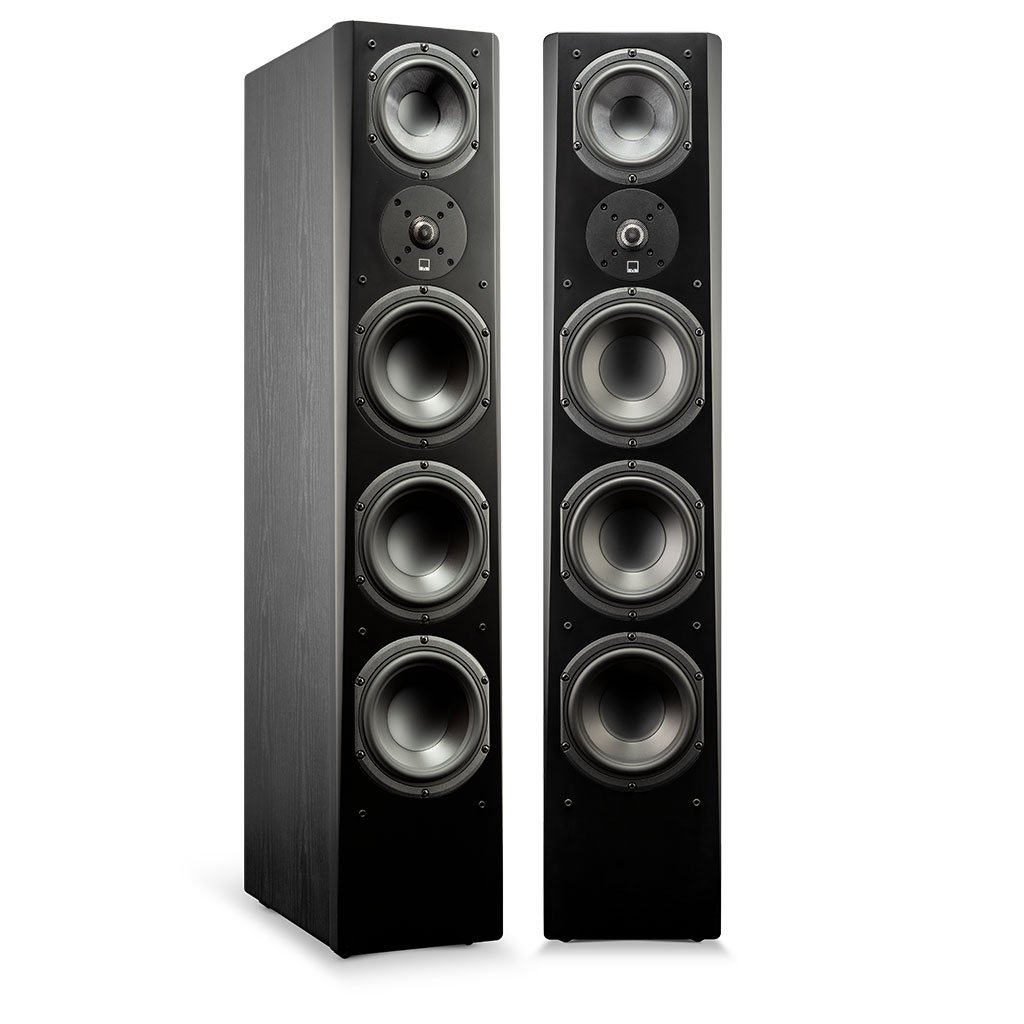

- Floor Standing Tower Loudspeaker
- Black ash and piano gloss black finish options

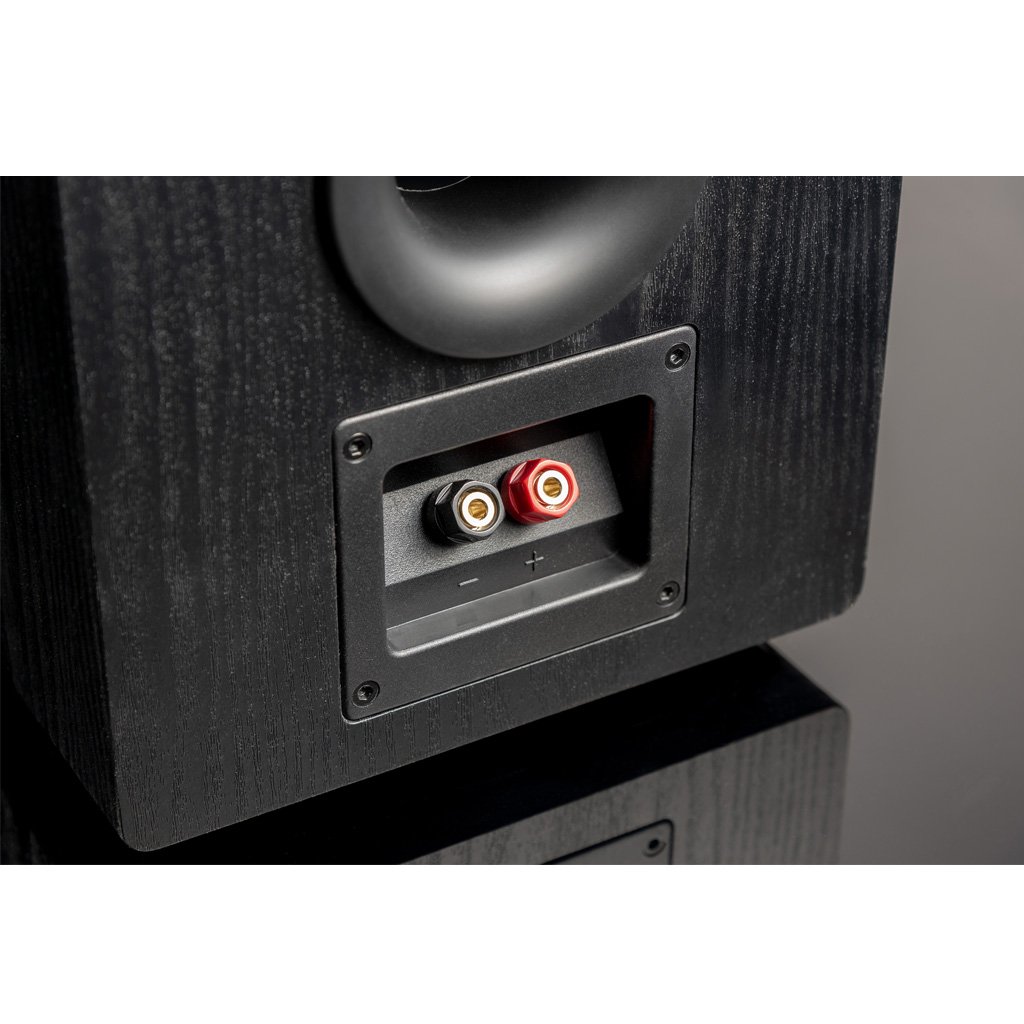

- 5-way binding posts

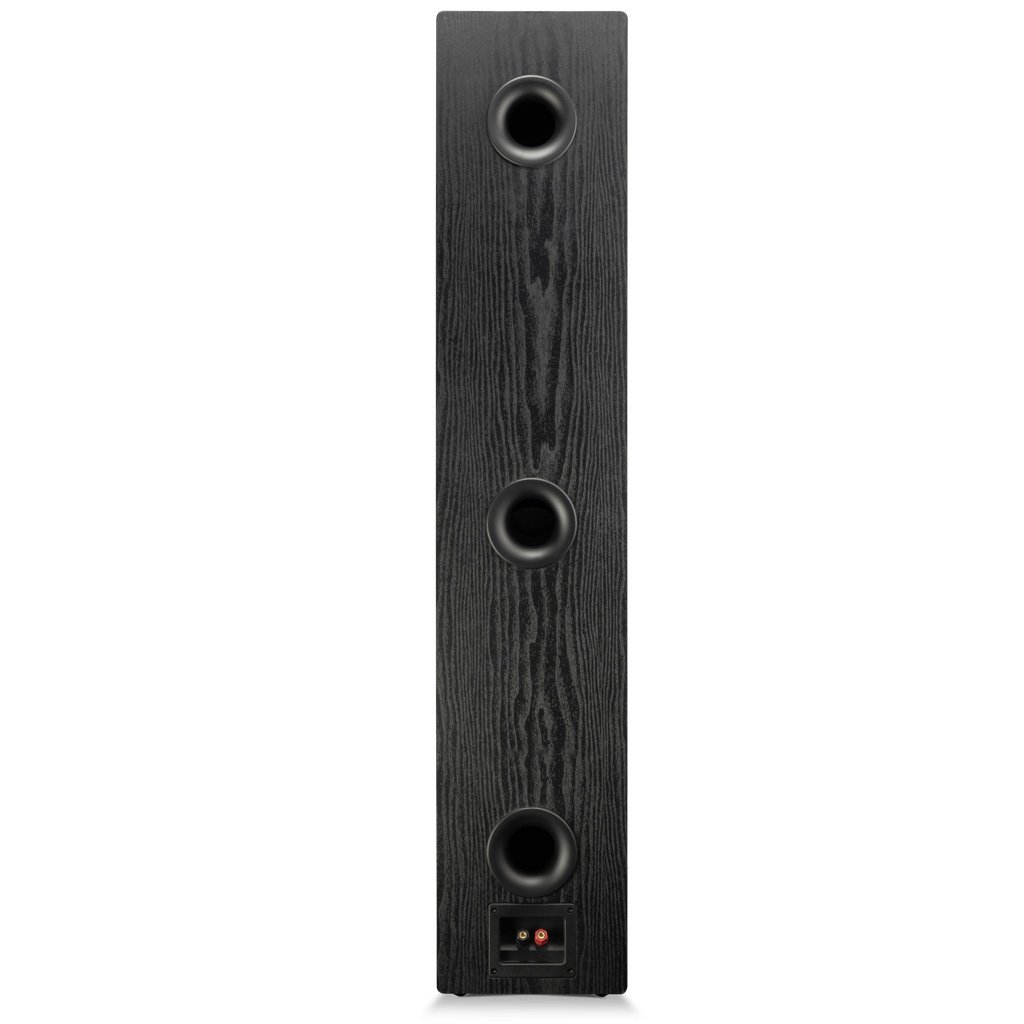

- Triple 2” wide-flared rear-firing ports

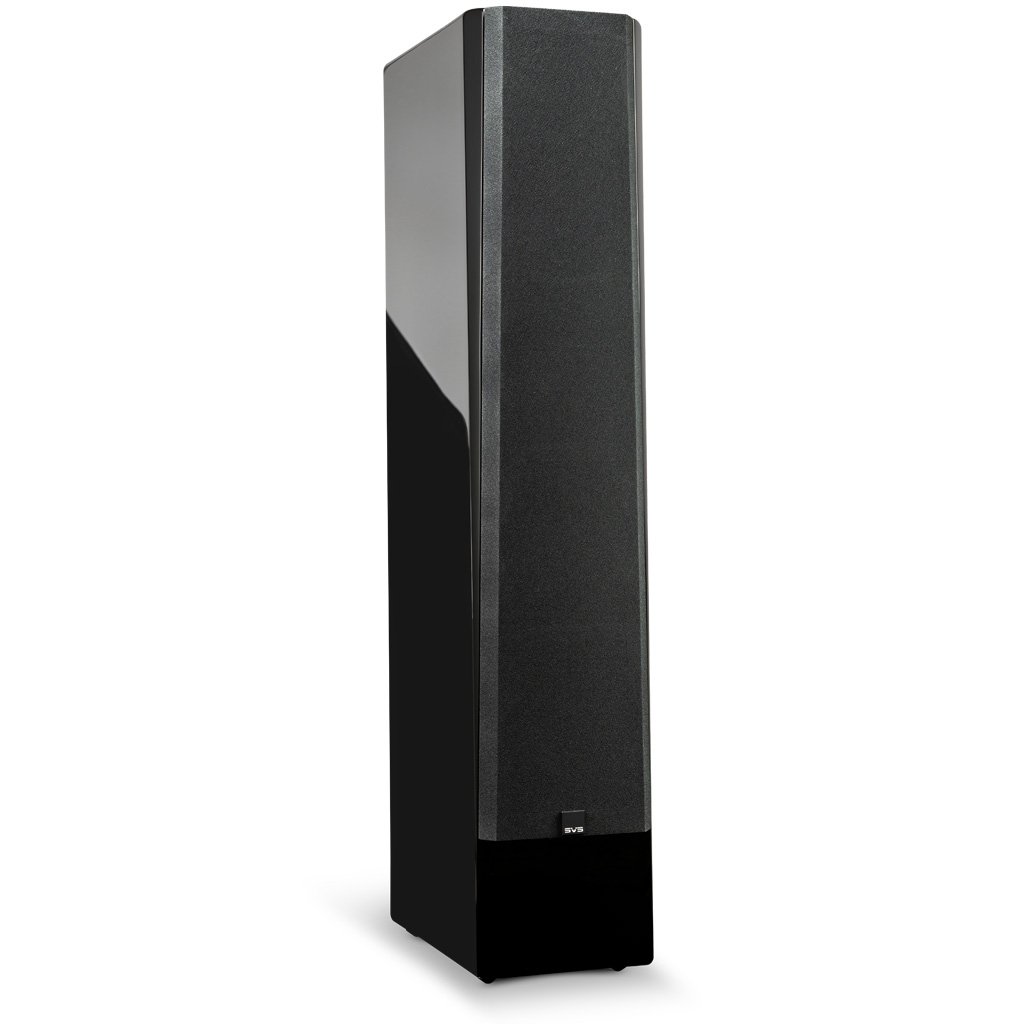

- Cloth grille with pin/cup retention system
- Cabinet Dimensions: 40.5" (H) X 8" (W) X 13.4" (D)
- Overall Dimensions: 41.1" (H) X 8" (W) X 13.9" (D) (includes grille, feet and binding posts)
- Shipped Dimensions: 46.5" (H) X 14.8" (W) X 19" (D)
- Weight Packaged: 66 lbs (29.9 kg)
- Weight Unboxed: 57.1 lbs (25.9 kg)
Driver Specs:
1” Aluminum Dome Tweeter:
- FEA-optimized diffuser for airy and unveiled presentation
- Aluminum dome for exceptional transient response
Triple 6.5” Woofers:
- Long stroke motor and suspension for high output
- Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
- Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
- Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
- Vented voice coil former minimizes air compression artifacts
5.25” Midrange Driver:
- Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond pass band
- Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
- Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
- Vented voice coil former minimizes air compression artifacts
Crossover & Cabinet Specs:
Crossover:
- 3-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards
- 2-piece PCB design reduces component interference
- Tweeter-to-Midrange crossover: 2.1kHz (12 dB/octave slopes)
- Midrange-to-Woofer crossover frequency: 300Hz (12 dB/octave slopes)
Cabinet:
- Separate sealed midrange enclosure with angled bracing diffuses and shifts standing waves beyond the driver pass band, improving sound quality
- Three separate woofer enclosures with optimized port tuning frequencies for smooth and accurate bass response
- Acoustically transparent and FEA optimized grilles minimize diffraction
- Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high frequency response
- FEA-optimized cabinet and angled bracing eliminates resonances and improves cabinet rigidity for acoustically inert enclosure
Audiophile Refinement. Breathtaking Home Theater Dynamics.
Design innovations in the Prime Pinnacle speaker harness qualities both discerning audiophiles and home theater fans will delight over. All-new driver array is optimized for massive dynamics and incredibly refined output while the cost-no-object cabinet design and materials, sophisticated components and inspired acoustic engineering combine for a floorstanding speaker that stands alone at its price and well beyond.
![Prime Pinnacle Midrange](jpg/prime-pinnacle-midrange-flipped9ed1.jpg)

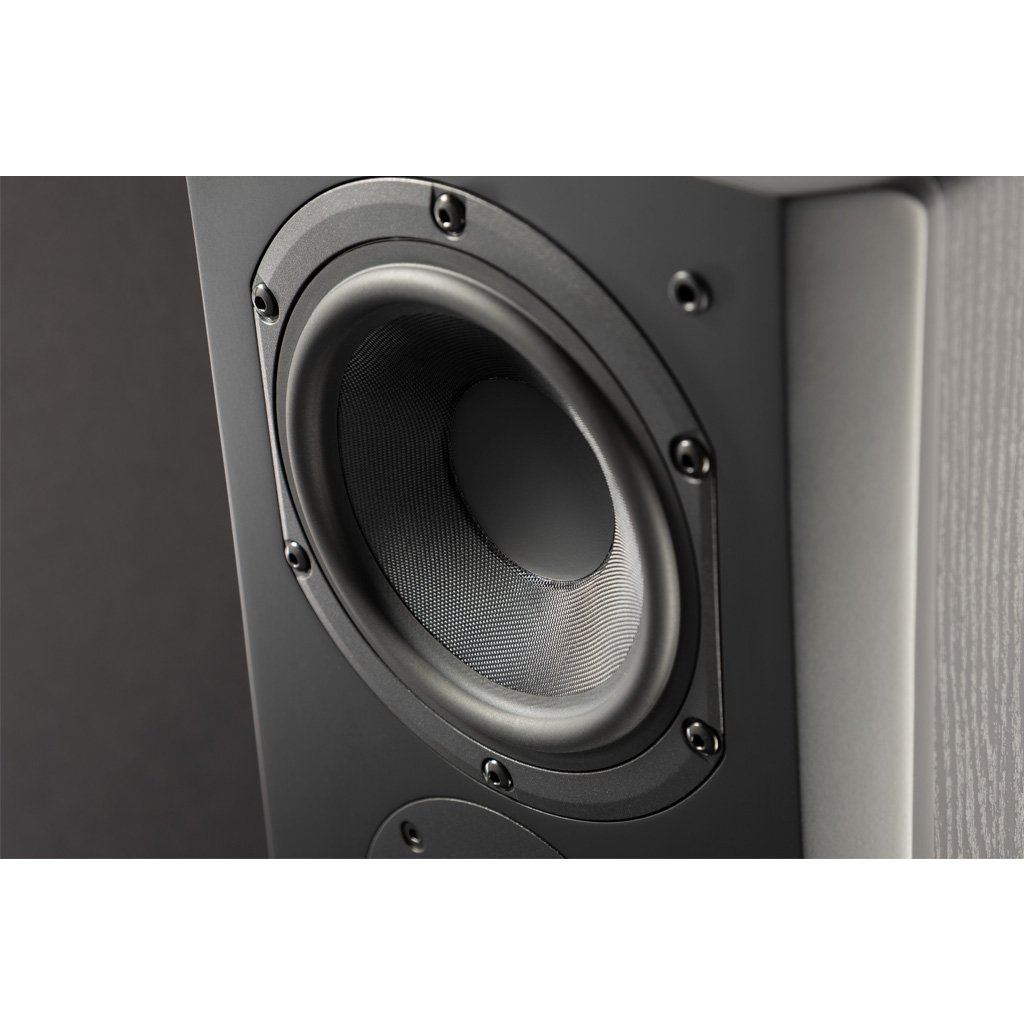

All-New 5.25" Midrange Driver with Composite Glass-Fiber Cone
Delivers pinpoint accuracy and broad soundstage for more immersive audio experiences. The majority of audio content in music and movies is present in the midrange frequencies so it’s imperative to have a driver capable of producing slam and impact as well as subtle details with tonal accuracy. Prime Pinnacle’s midrange borrows design elements from the reference Ultra Series to deliver uncompromised audio performance at all drive levels.

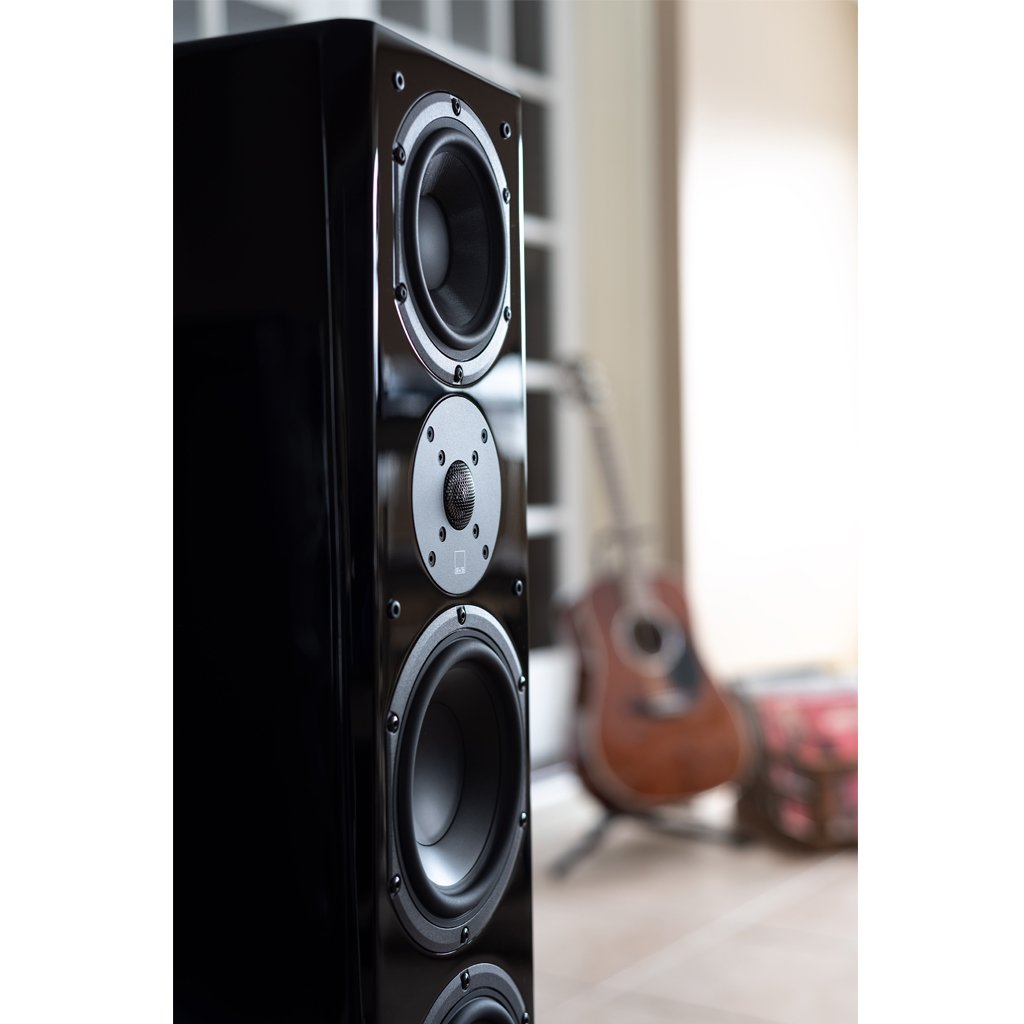

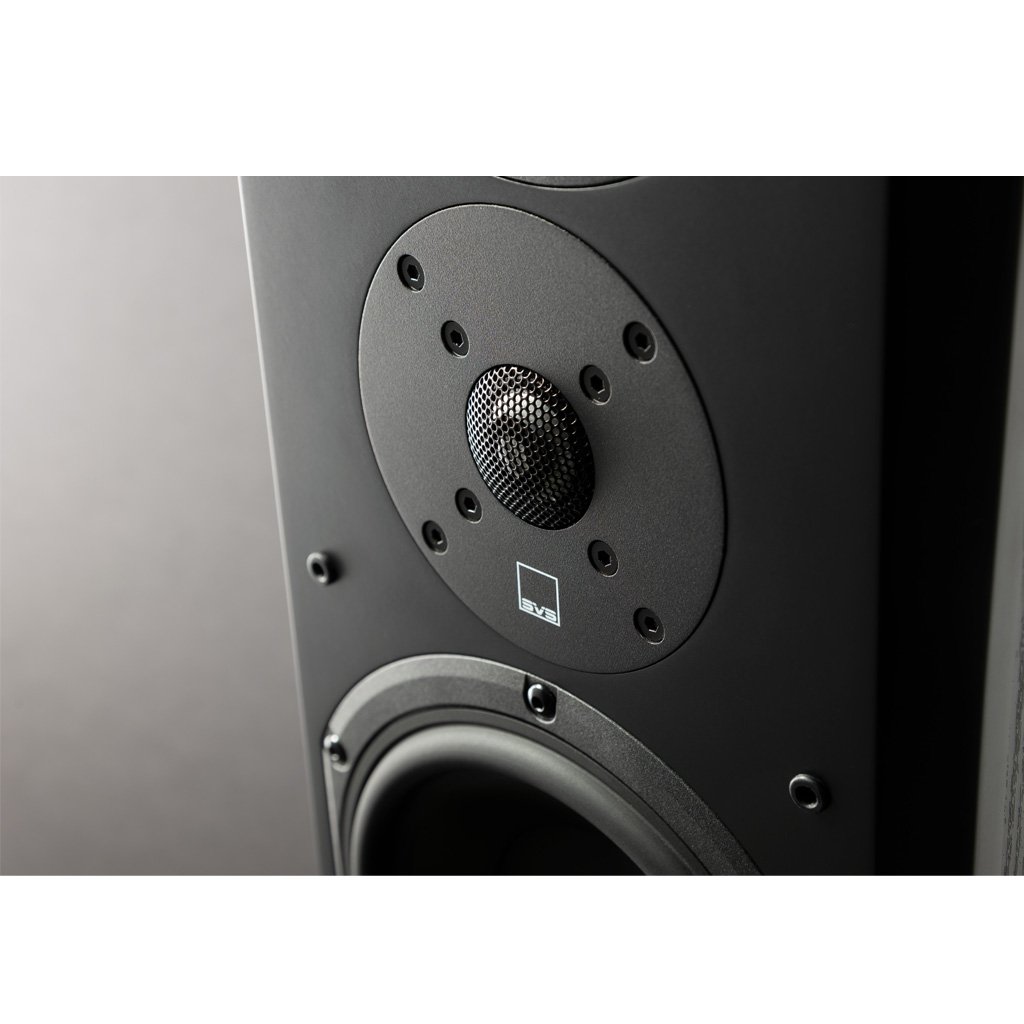

Premium 1” Aluminum Dome Tweeter
Renders crystal clear highs with lifelike realism even at reference volume. Light, efficient and impervious to distortion, the tweeter’s airy’ presentation effortlessly reveals every sonic detail with pristine clarity and unerring accuracy. The FEA-optimized diffuser ensures broad dispersion for a wide and convincing soundstage with pinpoint on- and off-axis frequency response so everyone in your room is treated with the same amazing audio experience.
![Prime Pinnacle Tweeter](jpg/prime-pinnacle-tweetera623.jpg)
![Prime Pinnacle Subwoofer](jpg/prime-pinnacle-woofer910f.jpg)

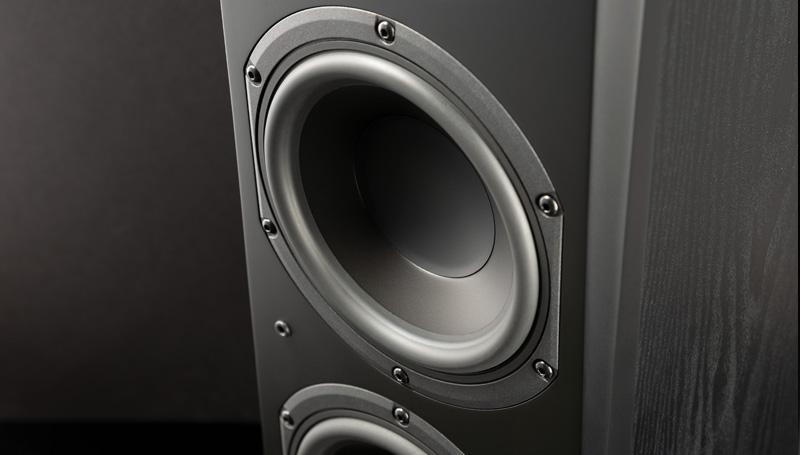

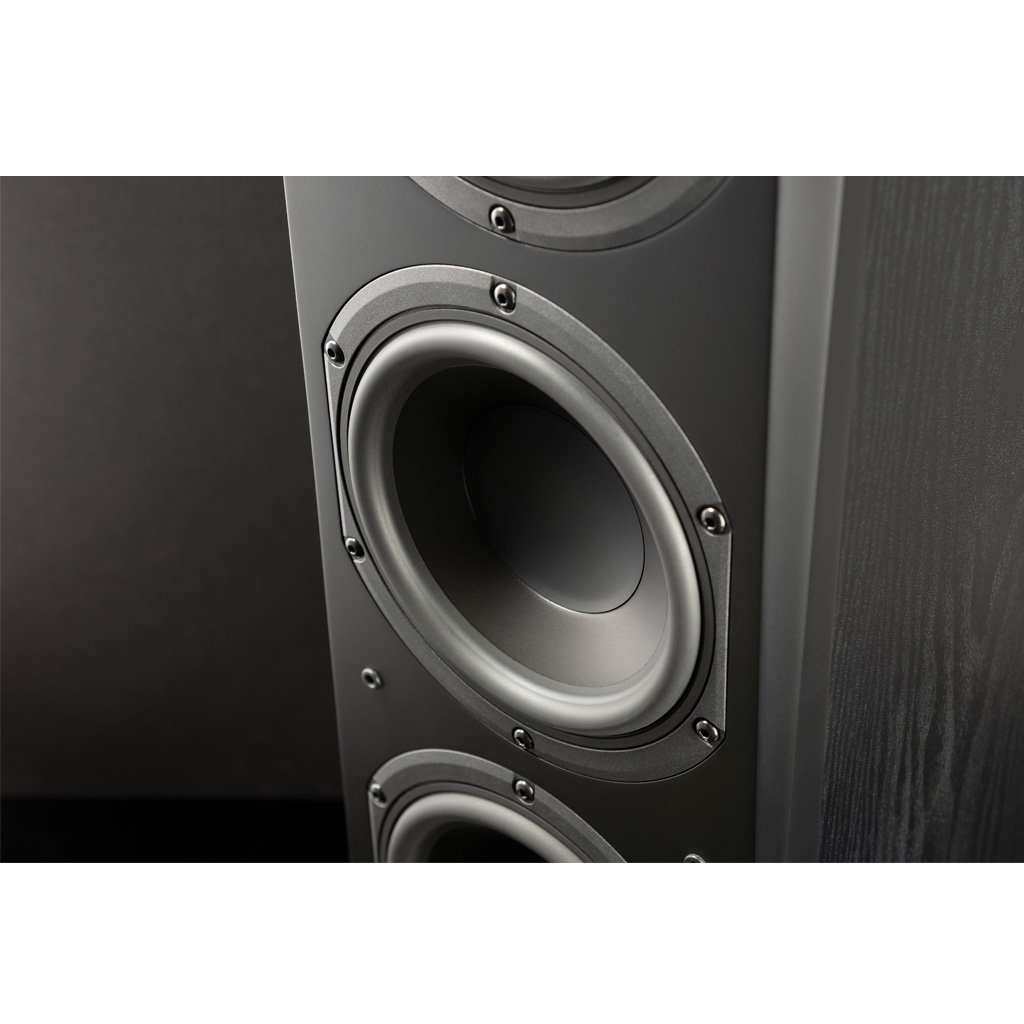

Trio of 6.5” High-Performance Woofers
Effortless low frequency output and impressive deep bass extension from three 6.5” woofers lays the sonic foundation for all audio content. Engineered to convey the full thrill and excitement of cinematic blockbusters yet refined enough to handle the pluck of a bass guitar string and subtlest musical details with convincing realism, Prime Pinnacle delivers an amazing full-range listening experience with all audio content. By using three smaller woofers, each with its own 2-inch port, the new floorstanding speaker effortlessly conveys low frequency output while maintaining a slim profile that fits in any room or system.
Three Unique Port Tuning Frequencies
Individual tuning frequencies and separate sub-enclosures for the trio of woofers epitomizes the no compromise design approach taken with Prime Pinnacle. This design ensures all drivers blend seamlessly together so you get silky-smooth transitions from the midrange driver to the woofers as well as accurate frequency response, amazing refinement and crisp speed in transients; all without sacrificing deep, room-energizing bass.
![Prime Pinnacle Crossover](jpg/crossover_crop_8003e93a-872a-48ee-bd74-eea0985db798279d.jpg)

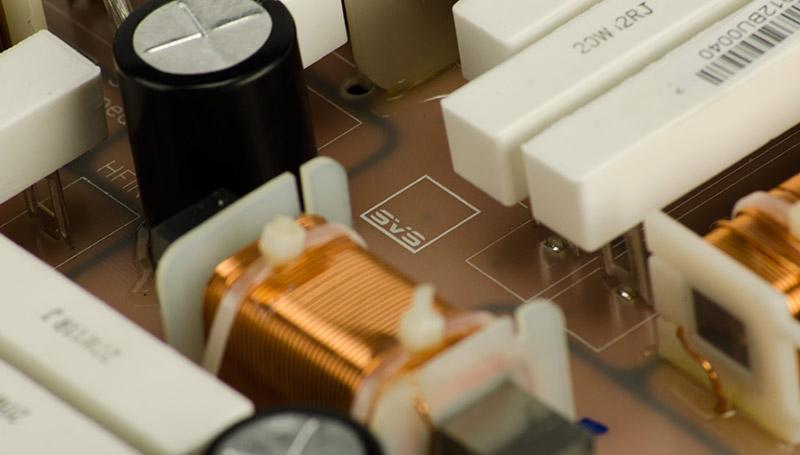

SVS SoundMatch 3-Way Crossover
Creates an expansive soundstage with accurate frequency response and precise imaging for largest “sweet spot” possible. The 3-way crossover is uniquely tuned so each driver, from tweeter to midrange and midrange to woofers, blend seamlessly with each other while offering excellent on and off-axis frequency response and pinpoint spatial imaging for the most convincing audio experience possible. The crossover’s topology and architecture are consistent with all SVS speakers so Prime Pinnacle is timbre matched to integrate with any speaker from the acclaimed Prime or Ultra Series for the ultimate flexibility when building a system.
Sonically Inert and Rigidly Braced Cabinet
Four self-contained, acoustically tuned internal chambers eliminate any potential for resonances or sonic artifacts from the enclosure, resulting in pristine audio playback across the frequency spectrum. Tapered edges on the Prime Pinnacle speaker’s front baffle, known as chamfers, minimize edge diffraction for a clear and precise soundstage while features like shorting rings and tweeter diffusers provide acoustic enhancements with modern, high-end visual appeal.
Lifestyle-Friendly Footprint
Fits seamlessly in any room layout or décor. Slim enough to place next to furniture or near a wall, yet spacious enough to produce effortless output and reference sound quality, Prime Pinnacle delivers jaw-dropping performances in stereo and home theater systems from a classically handsome tower speaker design.
![Prime Pinnacle Illustration](https://cdn.shopify.com/s/files/1/0921/3560/files/prime_pinnacle_illustration-_3.png?2002852088657977788)
Sound Expert Videos
SVS President Gary Yacoubian Discusses Prime Pinnacle
SVS Prime Elevation Home Theater Speaker Overview
Tips for Choosing Your Perfect Speaker
Designing a World Class Speaker
![Section Shadow](png/section-shadowe794.png)
Enter your speakers and the SVS Subwoofer Matching Tool will recommend suitable subwoofer matches as well as crossover frequency and low pass filter settings.
Personal SVS speaker and subwoofer system builder. Choose from preset home theater surround sound set-ups like 5.1, or custom build your own.
User Reviews | Press Reviews
User Reviews | Press Reviews
@SVS_Sound

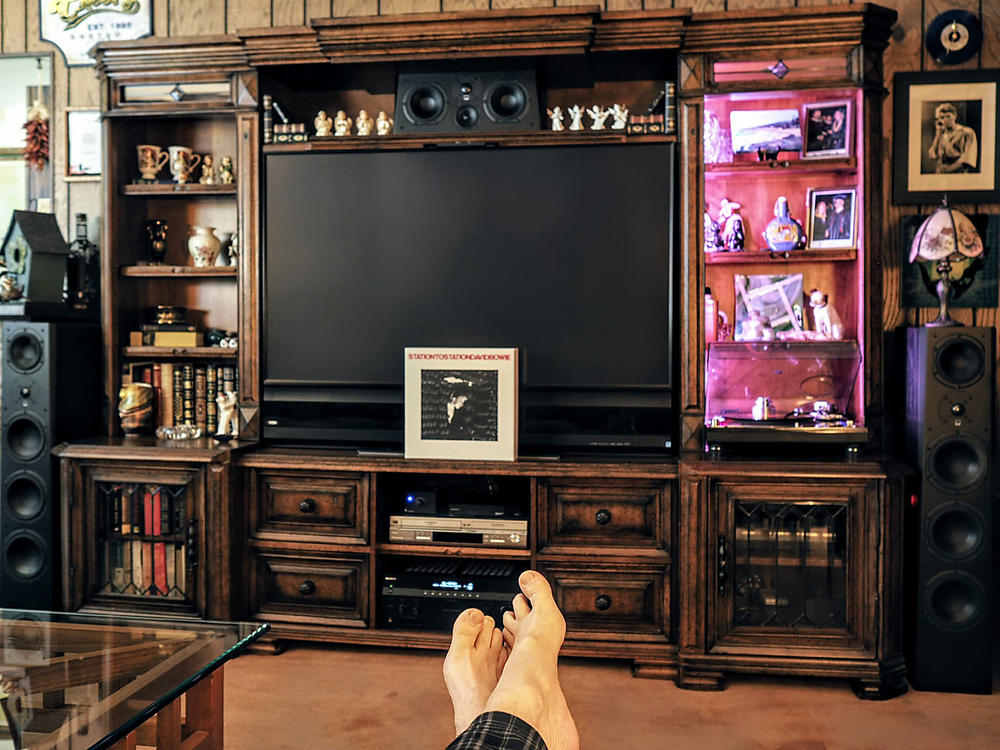

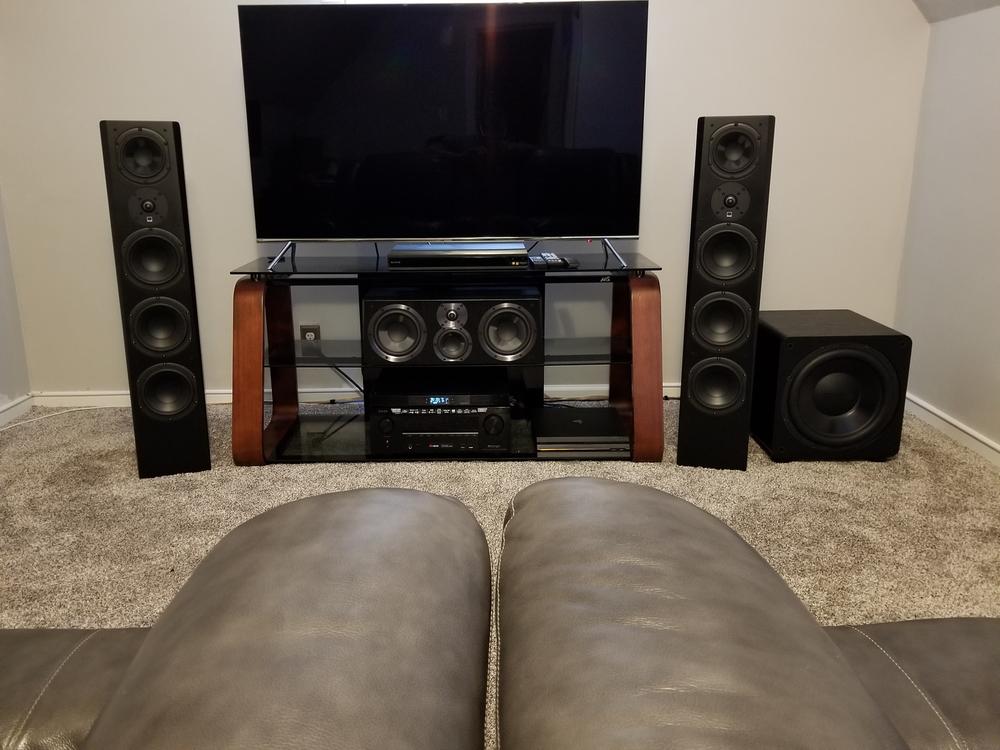

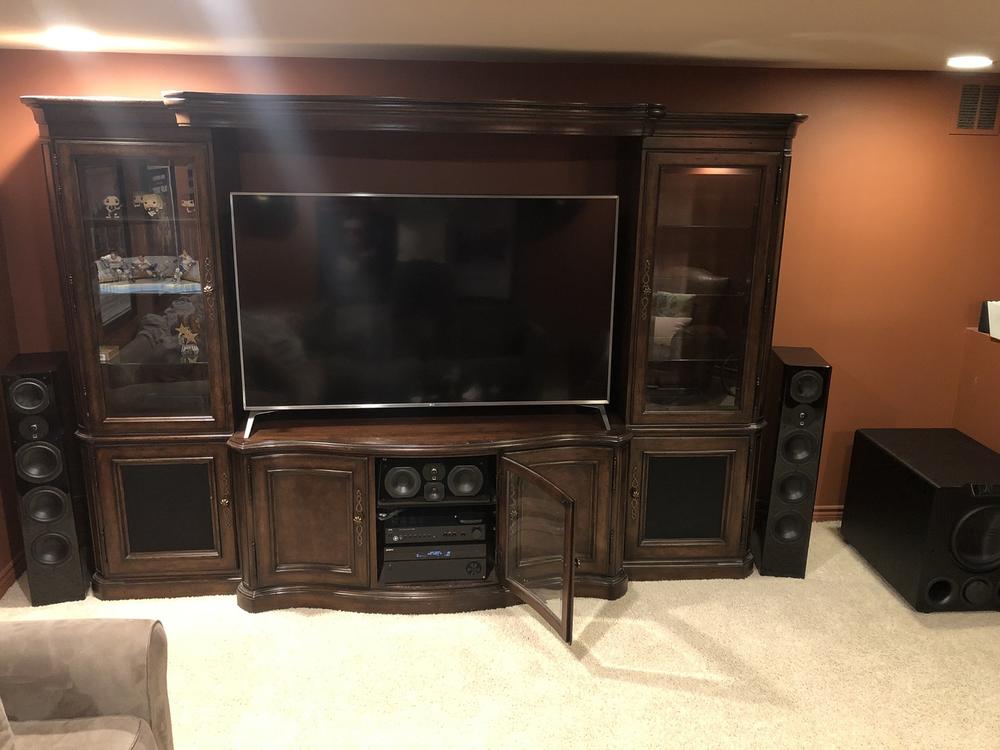

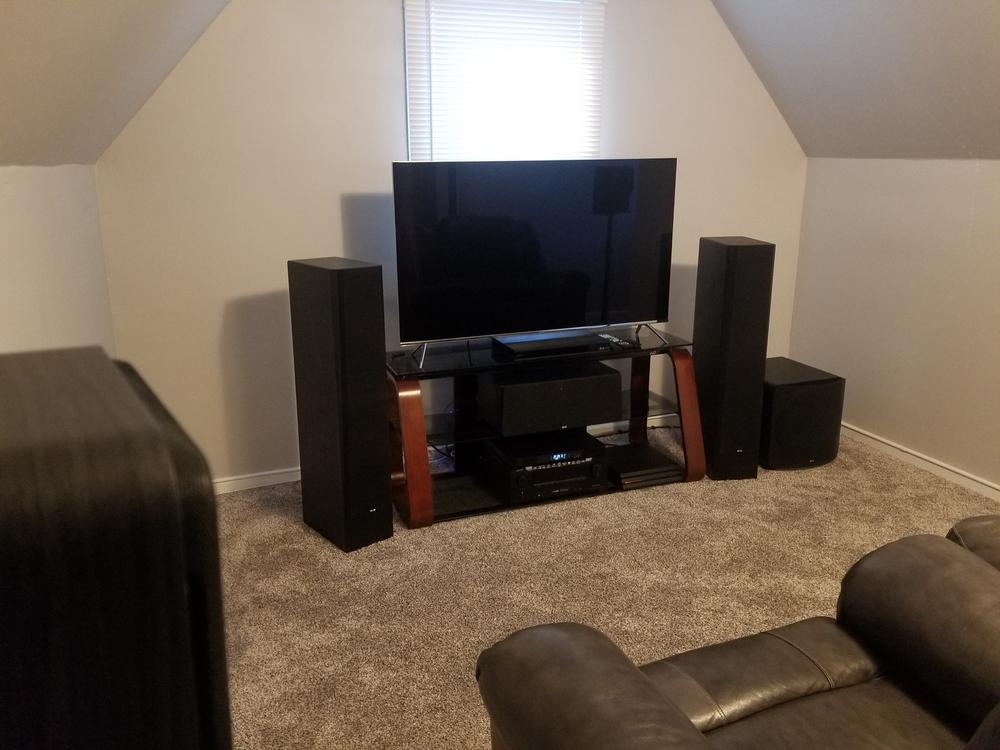

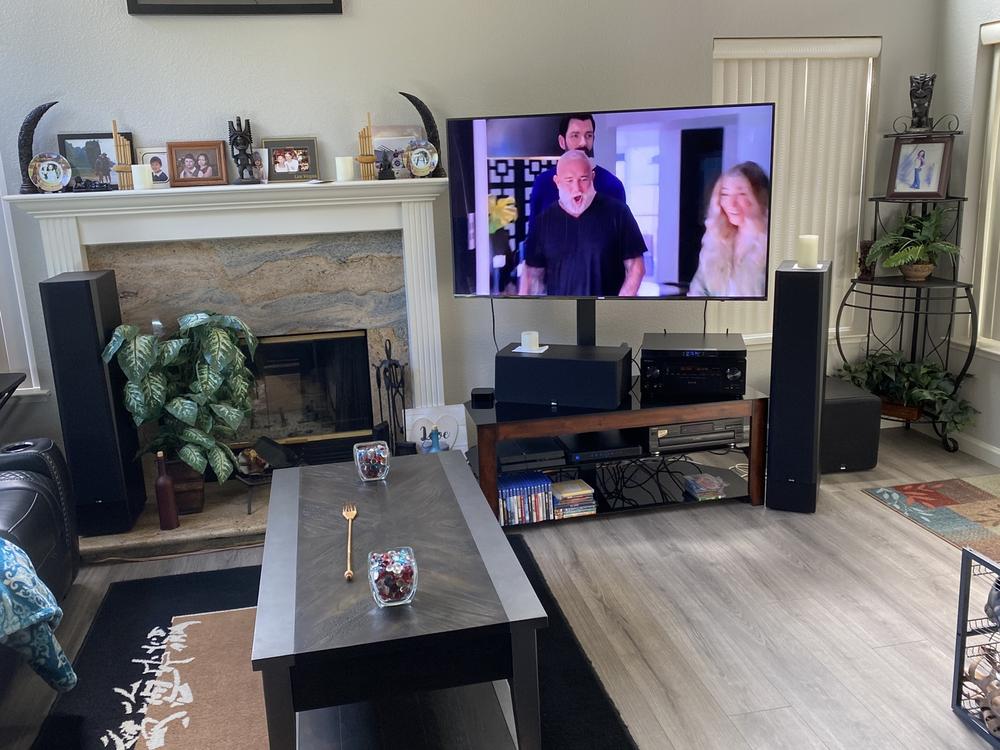

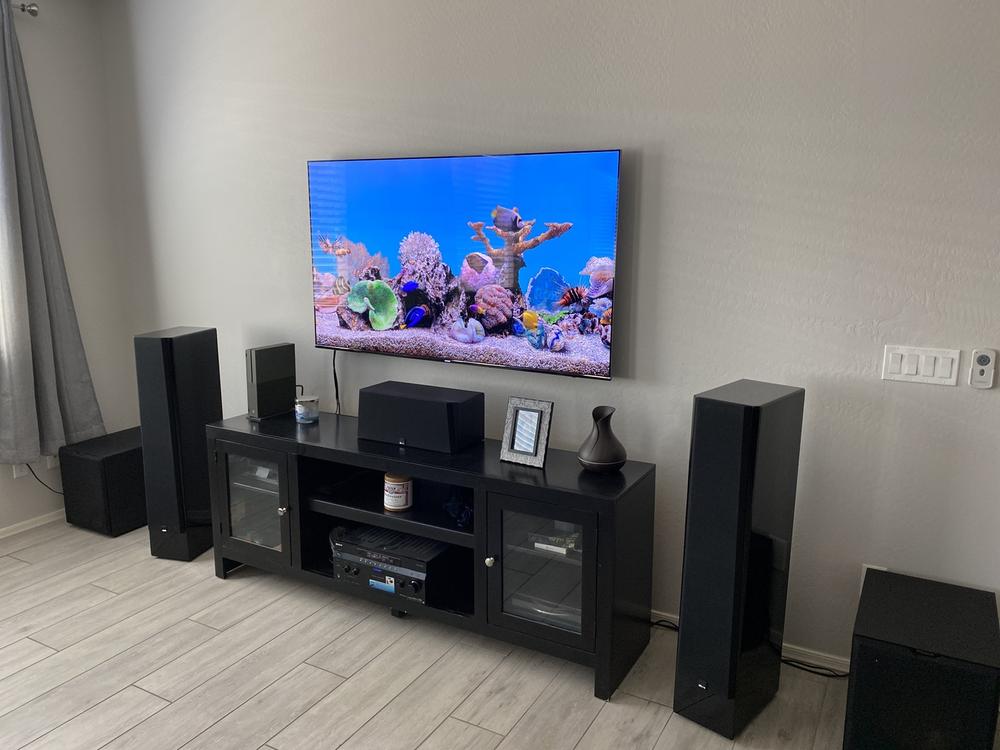

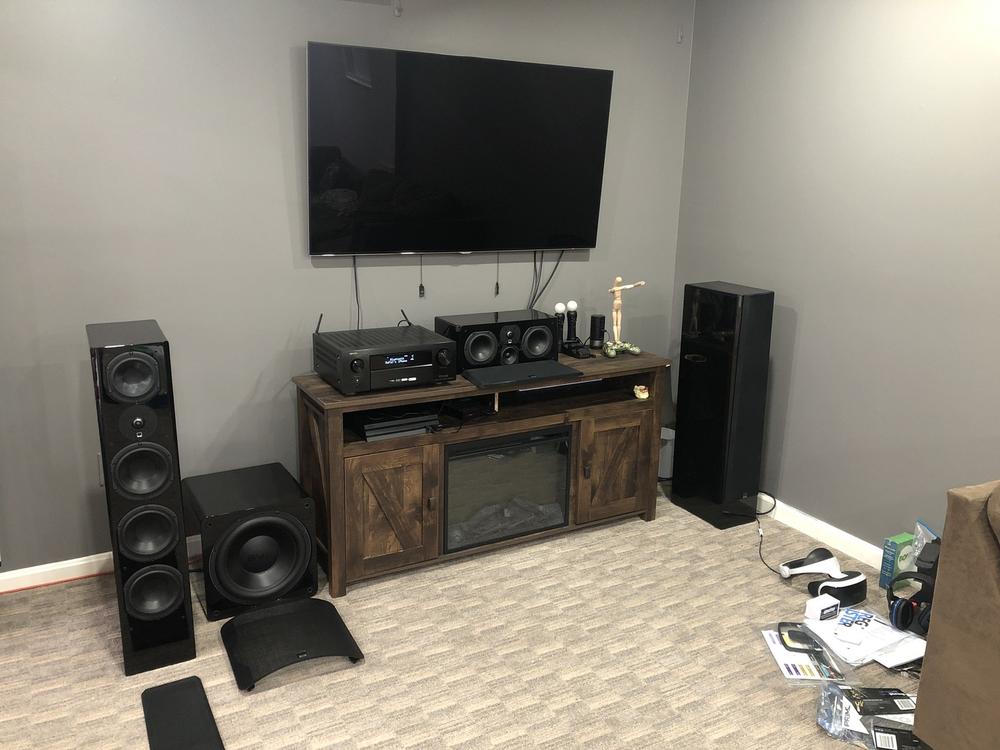

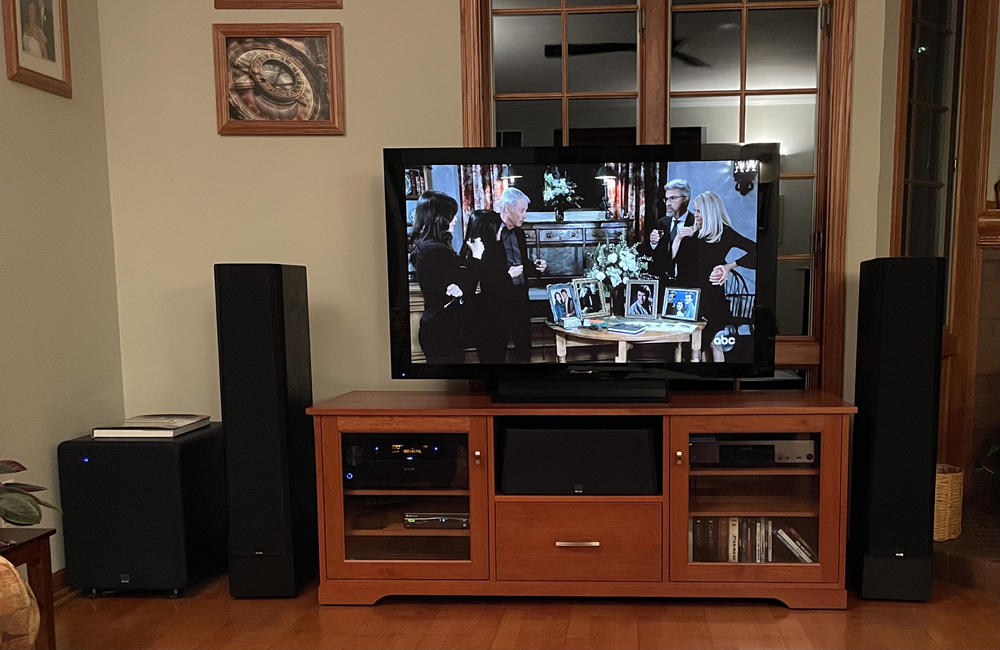

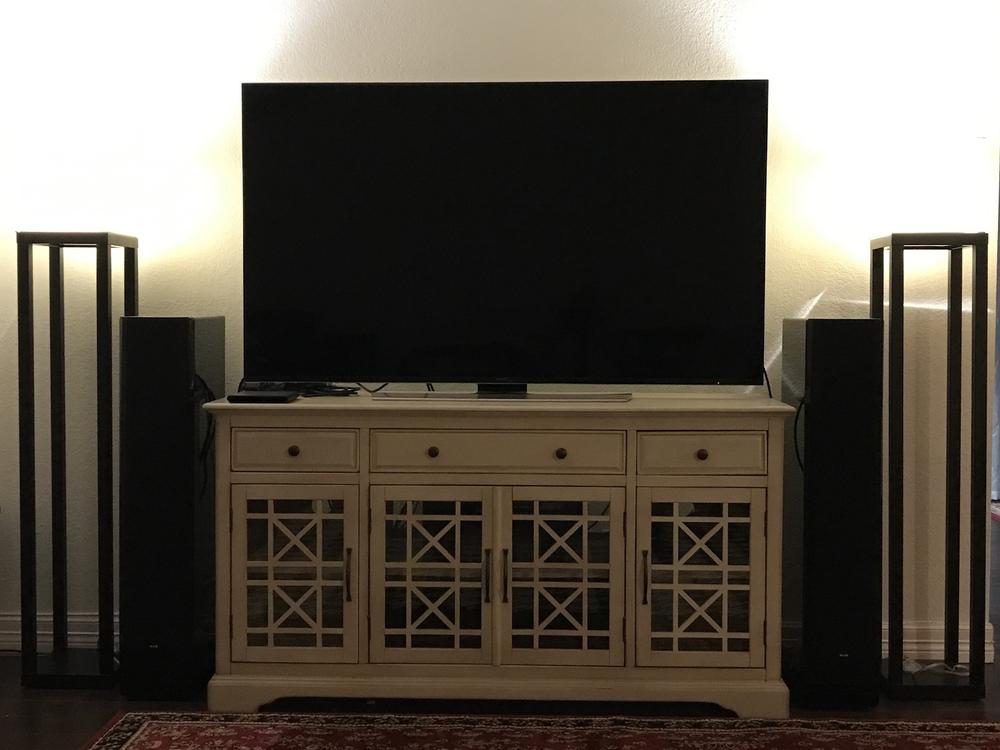

SVS owner shots shared via Instagram. Click on pics for captions and submit your own by tagging @SVS_Sound or #soundrevolution.
